5-AXIS LASER TECHNOLOGY
Laser technology enables us to produce texturizing, engraving, micro-structuring, marking and labeling of 2D geometries right through to complex 3D geometries. Custom Etch is the first in North America to offer a range of 5-axis lasers to handle regular to large size tools.
LASER CAPACITIES
Laser 1000
The ideal solution for duplicating a texture or engraving onto multiple tools with precision. The 1000 features an automated palletizing system, allowing it to reproduce 24 hours a day.
Primary Applications Include:
Bottle Molds, Dairy Molds, Medical tools, and small automotive molds.
Max workpiece dimensions
(W x D x H)
11.811 x 11.811 x 11.811 in
300 x 300 x 300 mm
Max workpiece weight
(3-axis machining)
1653.45 lb
750 kg
Max workpiece weight
(5-axis machining)
330.69 lb
150 kg
Laser 1200
The Laser 1200 is our most versatile machine. Molds that are larger can be engraved with the same accuracy as the 1000. The additional space also provides an option for small embossing rolls.
Primary Applications Include:
Multi-Cavity Molds, Outdoor product molds, Gun grips, and medium automotive molds.
Max workpiece dimensions
(W x D x H)
27.559 x 27.559 x 27.559 in
700 x 700 x 700 mm
Max. workpiece weight
3747.82 lb
1700 kg
Laser 4000
Custom Etch is the first company in North America to feature large format engraving with the Laser 4000. The largest molds can now feature complex 3D textures.
Primary Applications Include:
Larger molds such as Door Molds, Siding molds, Marine and Automotive Molds.
Maximum workpiece dimensions (W x D x H)
4000 x 3000 x 1500 mm
Max. workpiece weight
50,000 lbs current crane capacity
22679.62 kg
Laser 2500
Custom Etch is the first texture supplier in North America to add the Laser 2500 with Z shifter technology.
Primary Applications include: Automotive lighting molds with emphasis on fine texture applications.
Maximum workpiece dimensions (W x D x H)
98.43” x 78.74” x 47.24”
2500 x 2000 x 1200 mm
Max. workpiece weight
22,065 lbs
10,000 kg

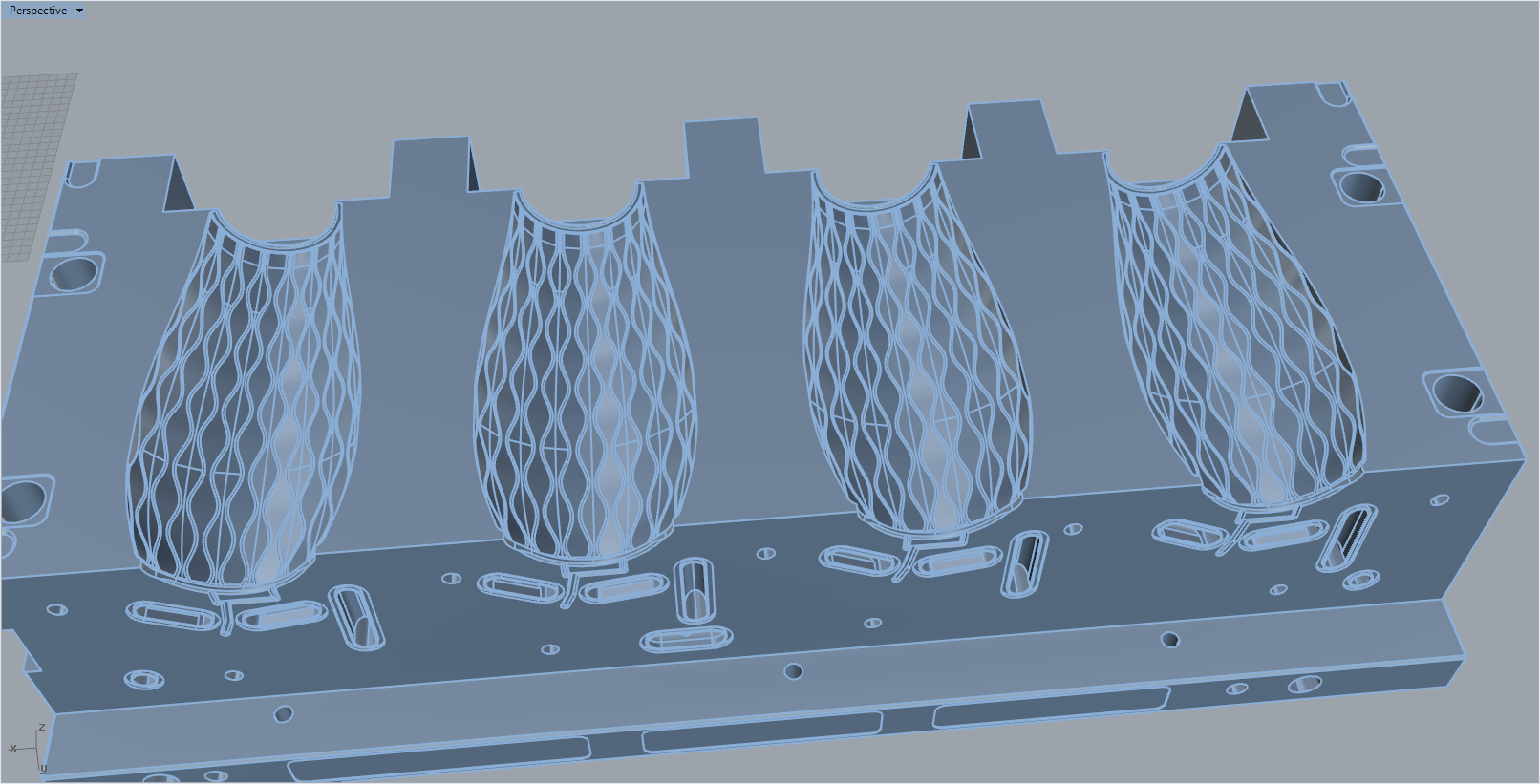

3D RENDERING
THE AUTOMATION CELL
LASER PROCESS
Custom Etch GF Machine Laser 4000 Demonstration
A Custom Etch demonstration of GF Machine’s Laser 4000 application of a laser texture onto a lens tool.
